ESPECIFICAÇÕES TÉCNICAS

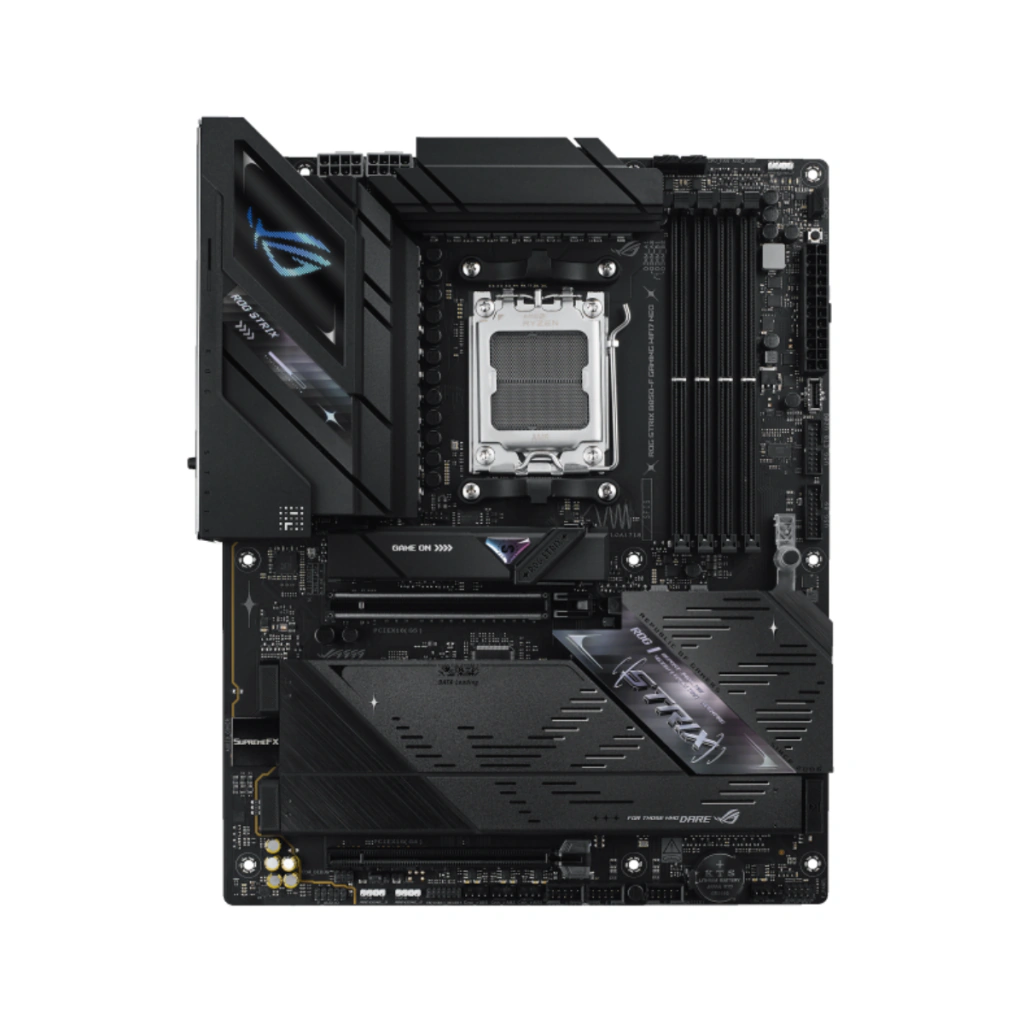

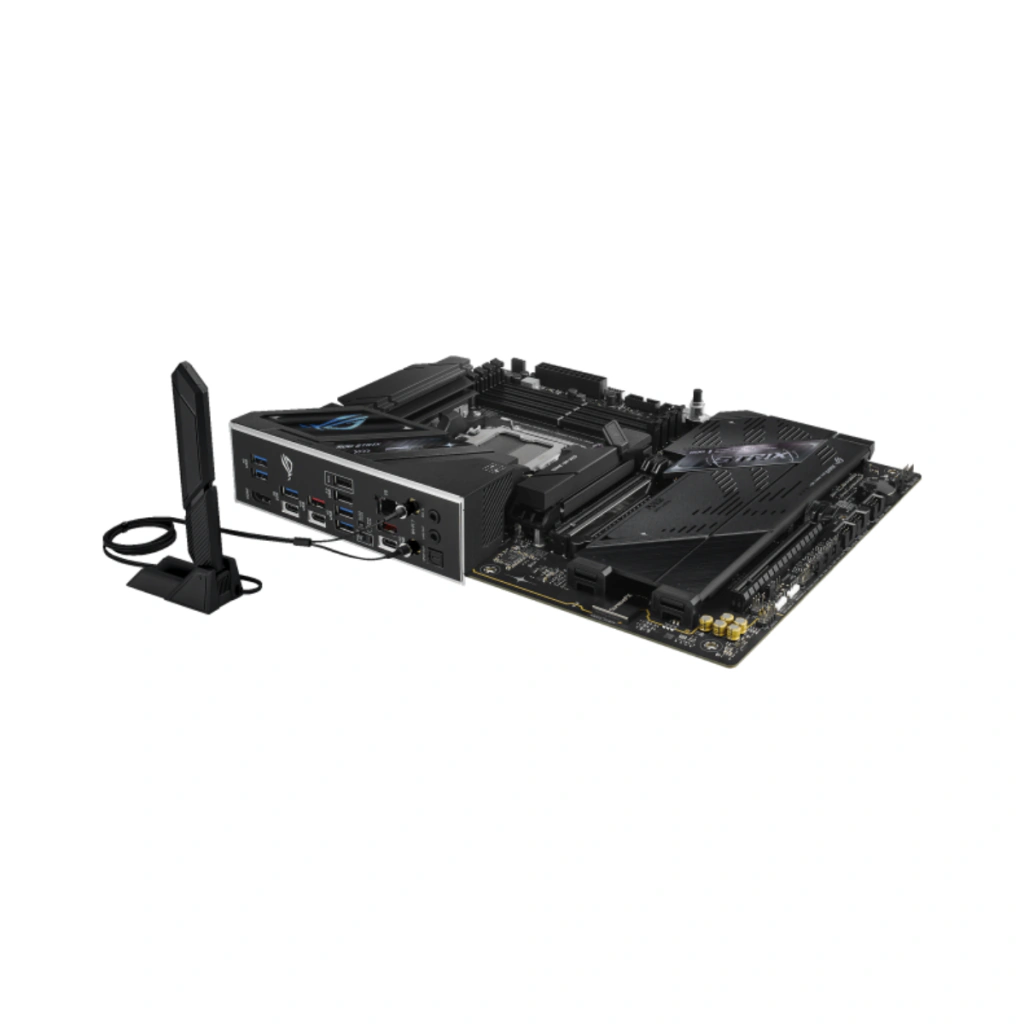

MODELO: ROG STRIX B850-F GAMING WIFI 7 NEO

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

CHIPSET: AMD B850 Chipset

MEMÓRIA:

• 4x DIMM slots, max. 256GB, DDR5
• Supports up to 9000+MT/s (OC), ECC and Non-ECC, Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

GRÁFICOS:

• 1x HDMI™ (Supports 4K@60Hz as specified in HDMI 2.1)

SLOTS DE EXPANSÃO:

• • AMD Ryzen™ 9000 & 7000 Series: 1x PCIe 5.0 x16 (supports x16 mode)
  • AMD Ryzen™ 8700 & 8600 & 8400 Series: 1x PCIe 4.0 x16 (supports x8 mode)
  • AMD Ryzen™ 8500 & 8300 Series: 1x PCIe 4.0 x16 (supports x4 mode)
  • Chipset AMD B850: 1x PCIe 4.0 x16 (supports x4 mode)

ARMAZENAMENTO:

• 4x M.2 slots (M.2_1 & M.2_2 support PCIe 5.0 x4 depending on CPU)
• 2x SATA 6Gb/s ports

REDE:

• 1x Realtek® 5Gb Ethernet
• ASUS LANGuard

CONECTIVIDADE:

• Wi-Fi 7 (2x2 Wi-Fi 7 802.11be, 160MHz bandwidth)
• Bluetooth® v5.4 (support LE Audio)

USB:

• Painel Traseiro (Total 12 ports)
  • 4x USB 10Gbps (2x Type-A + 2x USB Type-C®)
  • 6x USB 5Gbps (5x Type-A + 1x USB Type-C®)
  • 2x USB 2.0 (2x Type-A)
• Painel Frontal (Total 7 ports)
  • 1x USB 20Gbps connector (supports USB Type-C®)
  • 2x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 3x USB 2.0 headers support 6 additional USB 2.0 ports

ÁUDIO:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080:

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel

Audio Features:

• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

PAINEL TRASEIRO:

• 4x USB 10Gbps (2x Type-A + 2x USB Type-C®)
• 6x USB 5Gbps (5x Type-A + 1x USB Type-C®)
• 2x USB 2.0 (2x Type-A)
• 1x HDMI™ port
• 1x módulo Wi-Fi (ASUS WiFi Q-Antenna)
• 1x Realtek® 5Gb Ethernet port
• 2x Audio jacks
• 1x Optical S/PDIF out
• 1x BIOS FlashBack™ button
• 1x Clear CMOS button

CONECTORES INTERNOS:

• Fan and Cooling Related
  • 1x 4-pin CPU Fan header
  • 1x 4-pin CPU OPT Fan header
  • 1x 4-pin AIO Pump header
  • 4x 4-pin Chassis Fan headers
• Power Related
  • 1x 24-pin Main Power connector
  • 2x 8-pin +12V CPU Power connectors
• Storage Related
  • 4x M.2 slots (Key M)
  • 2x SATA 6Gb/s ports
• USB
  • 1x USB 20Gbps connector (supports USB Type-C®)
  • 2x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 3x USB 2.0 headers support 6 additional USB 2.0 ports
• Miscellaneous
  • 3x Addressable Gen 2 headers
  • 1x CPU Over voltage jumper
  • 1x Front Panel Audio header (F_AUDIO)
  • 1x Power button
  • 1x 10-1 pin Front System Panel header
  • 1x Thermal Sensor header
  • 1x Thunderbolt™ (USB4®) header

Mais detalhes técnicos e/ou atualizações sobre o produto, consultar https://rog.asus.com/br/motherboards/rog-strix/rog-strix-b850-f-gaming-wifi7-neo/spec/

FICOU COM DÚVIDA?

ATENÇÃO!

Imagens meramente ilustrativas.
Prevalecerá sempre a configuração exibida na descrição do produto.
Componentes podem variar conforme o estoque, mas sempre com qualidade equivalente garantida.
O cliente será previamente informado em caso de necessidade de substituição de algum componente.
