ESPECIFICAÇÕES

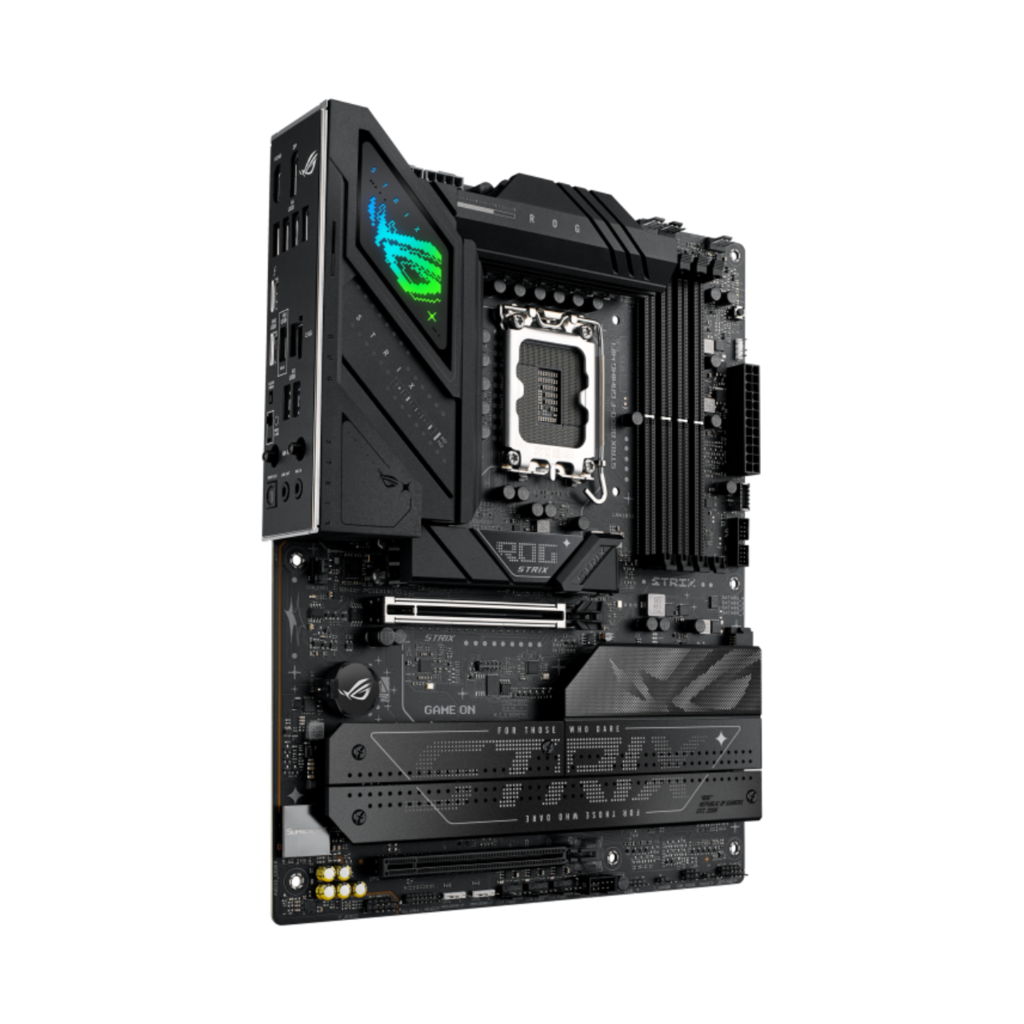

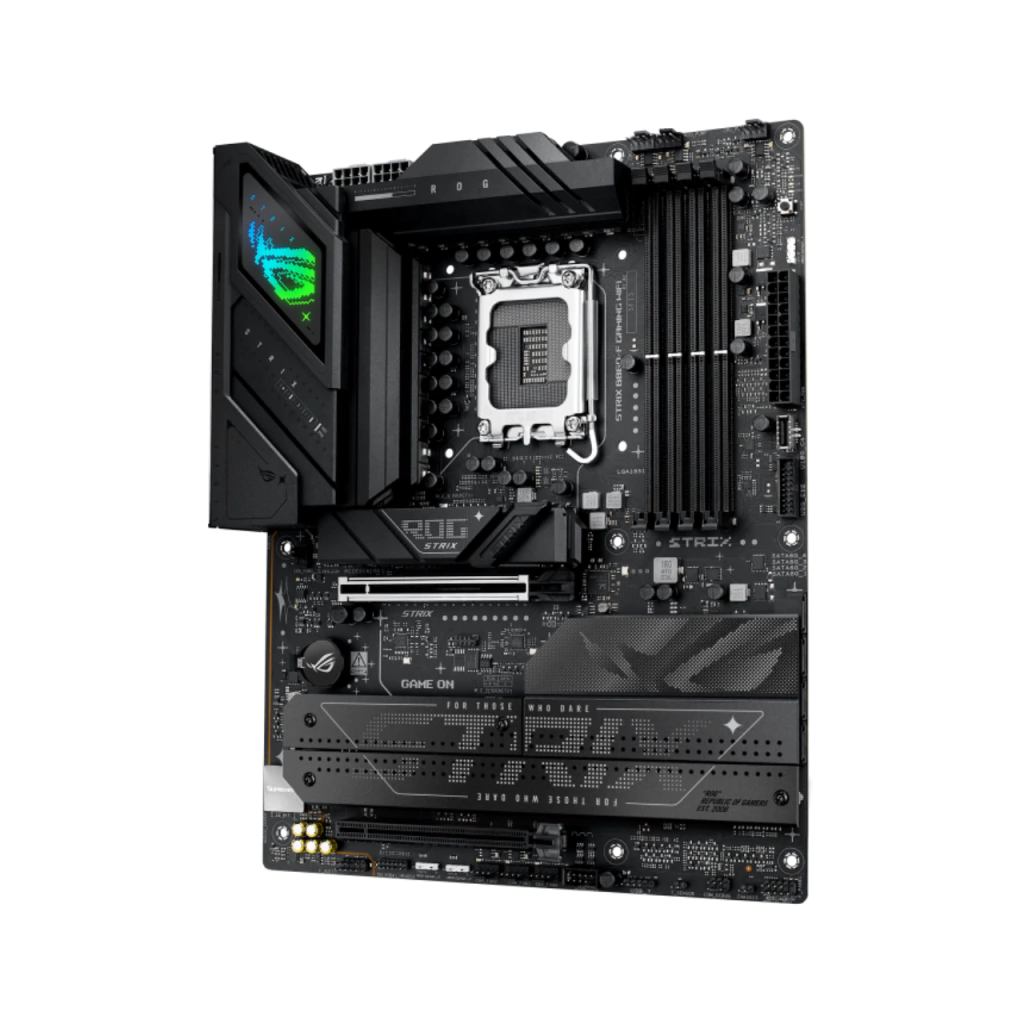

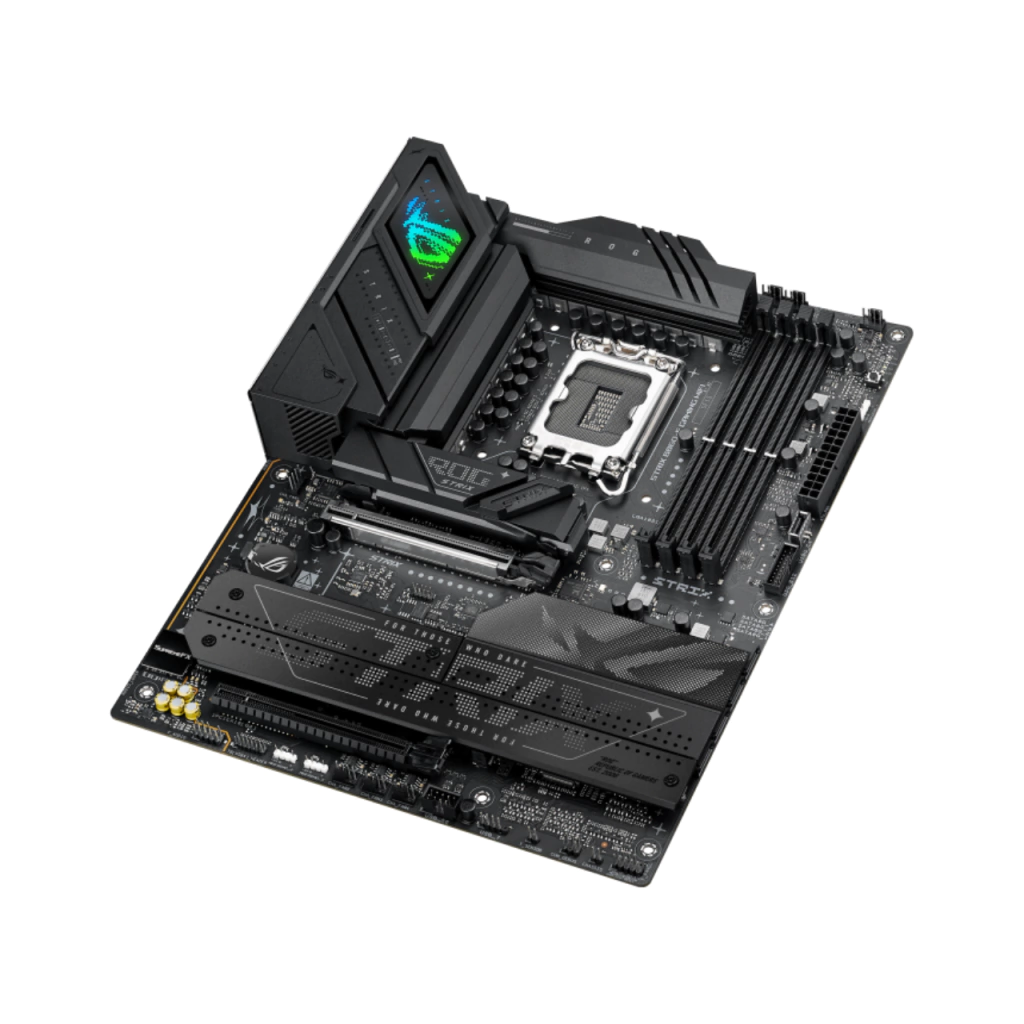

MODELO: ROG STRIX B860-F GAMING WIFI

CPU

• Support Intel® Core™ Ultra Processors (Series 2)
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

CHIPSET: B860

MEMÓRIA:

• 4x DIMM slots, max. 256GB, DDR5
• Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• DIMM Fit
• ASUS Enhanced Memory Profile III (AEMP III)

GRÁFICOS:

• 1x HDMI™
• 1x DisplayPort
• 1x Intel® Thunderbolt™ 4 (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs

SLOTS DE EXPANSÃO:

• • Intel® Core™ Ultra Processors(Series 2): 1x PCIe 5.0 x16 (supports x16 mode)
  • Intel® B860 Chipset: 1x PCIe 4.0 x16 (supports x4 mode)

ARMAZENAMENTO:

• 4x M.2
• 4x SATA 6Gb/s

REDE:

• 1x Intel® 2.5Gb Ethernet
• ASUS LANGuard

CONECTIVIDADE:

• Wi-Fi 7 (2x2 Wi-Fi 7 802.11be)
• Bluetooth® v5.4

USB:

• Painel Traseiro
  • 1x Thunderbolt™ 4 (Type-C®)
  • 1x USB 20Gbps (Type-C®)
  • 1x USB 10Gbps (Type-A)
  • 6x USB 5Gbps (Type-A)
• Painel Frontal
  • 1x USB 20Gbps (Type-C®)
  • 1x USB 5Gbps header supports 2 additional USB 5Gbps
  • 2x USB 2.0 headers support 3 additional USB 2.0

ÁUDIO:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080:

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel

Audio Features:

• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors- Audio cover

PAINEL TRASEIRO:

• 1x Thunderbolt™ 4 (USB Type-C®)
• 1x USB 20Gbps (1x USB Type-C®)
• 1x USB 10Gbps (Type-A)
• 6x USB 5Gbps (Type-A)
• 1x DisplayPort
• 1x HDMI™
• 1x módulo Wi-Fi
• 1x Intel® 2.5Gb Ethernet
• 2x audio jacks
• 1x Optical S/PDIF out
• 1x BIOS FlashBack™ button
• 1x Clear CMOS button

CONECTORES INTERNOS:

• Fan and Cooling Related
  • 1x 4-pin CPU Fan header
  • 1x 4-pin CPU OPT Fan header
  • 1x 4-pin AIO Pump header
  • 4x 4-pin Chassis Fan headers
• Power Related
  • 1x 24-pin Main Power connector
  • 1x 8-pin +12V CPU Power connector
• Storage Related
  • 2x M.2 (Key M)
  • 4x SATA 6Gb/s
• USB
  • 1x USB 10Gbps connector (supports USB Type-C®)
  • 1x USB 5Gbps header supports 2 additional USB 5Gbps
  • 2x USB 2.0 headers support 3 additional USB 2.0
• Miscellaneous
  • 3x Addressable Gen2 headers
  • 1x Chassis Intrusion header
  • 1x Front Panel Audio header (F_AUDIO)
  • 1x Start button
  • 1x 10-1 pin Front System Panel header
  • 1x Thermal Sensor header
  • 1x Thunderbolt™ (USB4®) header

Mais detalhes técnicos e/ou atualizações sobre o produto, consultar https://rog.asus.com/motherboards/rog-strix/rog-strix-b860-f-gaming-wifi/spec/
